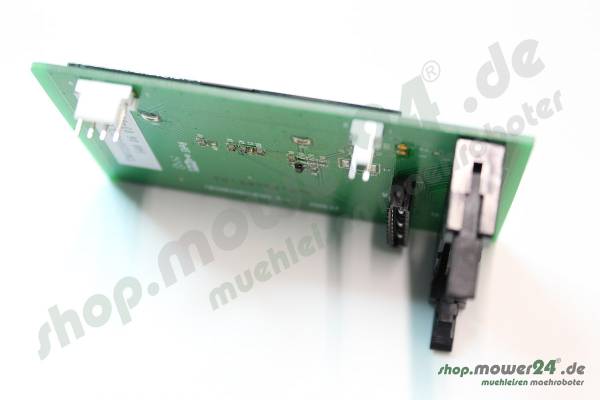

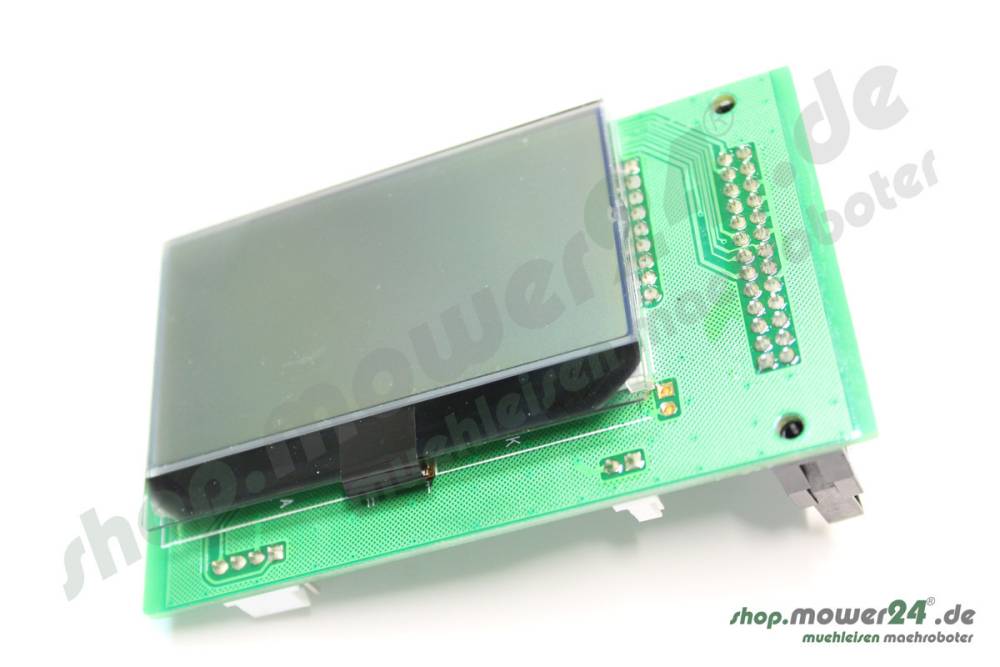

Display Board G2220AC

Description
Display board for all the latest Robotic G2, 220AC
Latest version.



Note Models 2004, 2005, 2006:
Old Display 535 12 34-xx is no longer available.
(Altes Display Typen / Aufschrift: TR-804, Truly, MGG435-xx-x)
When replacing an old screen with the item number (label) 535 12 34-XX
may consist of equipment models from model year 2004, 2005, 2006, only with a new
Display 540 06 03-XX done. This however is a software update (firmware) of the
Robotic motherboard needed. Otherwise, the display is usually too dark
and Mirror Image. The correct display of the display is a fitting
New software controlled.


Note Models 2007, 2008, 2009, 2010, 2011, 2012, 2013, ...

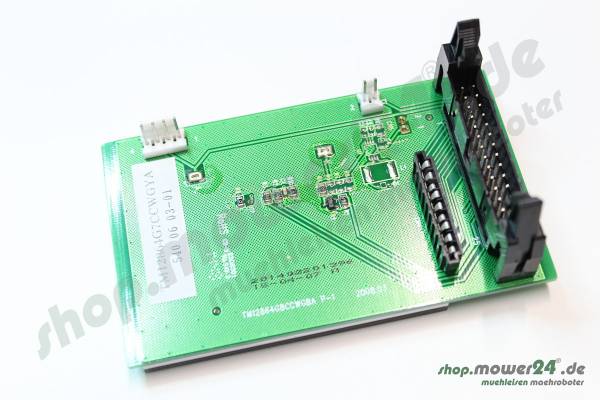

(Neues Display Typ: TM12864Exxxxxxxx)
When replacing a display 540 06 03-XX (labeled on the display) manufactured from
Model / Year 2007, you do not need a software update. The replacement or
replace the defective one display can be made here without any problems.
You need this new software!


Data
suitable for
Model: G2, 220AC
Year: 2004, 2005, 2006 maybe software update is necessary.
Year: 2007, 2008, 2009, 2010, 2011, 2012, 2013, ... is no software update necessary.

Modelle: Gardena R120
Baujahre: 2013, 2014, ...

Replaces:
535123401, 5351234-01; 535 12 34-01 (2004, 2005, 2006)
540060301, 5400603-01; 540 06 03-01 (2007, 2008, 2009, 2010, 2011, 2012, ...)


EAN:
Manufacturer: Original part Husqvarna SE

See instructions below
