Repair KIT Cutting Disk G2 XL
(Item number: AM-CUTTING-KIT-G2_XL)
Reparatur Kit Satz für die Messerscheibe des Automower® G2, 210C, 220ACX, 230ACX, SolarHybrid.
Repair Kit Set for cutting disc of Automower® G2, 210C, 220ACX, 230ACX, Solar Hybrid.
Kit Set "XL" mit Mähmotor, Mähmotorhalterung, Aufnahme, Dichtung, Balg, ...
Eine laute Messerscheibe oder Gleitteller ? Gerissene Messerscheibe ? Defekte Lager ?
Mit unserem Kit erneuern Sie fast alle Teile an der Messerscheibe.
Mir empfehlen dazu gleich neue Original Messer.

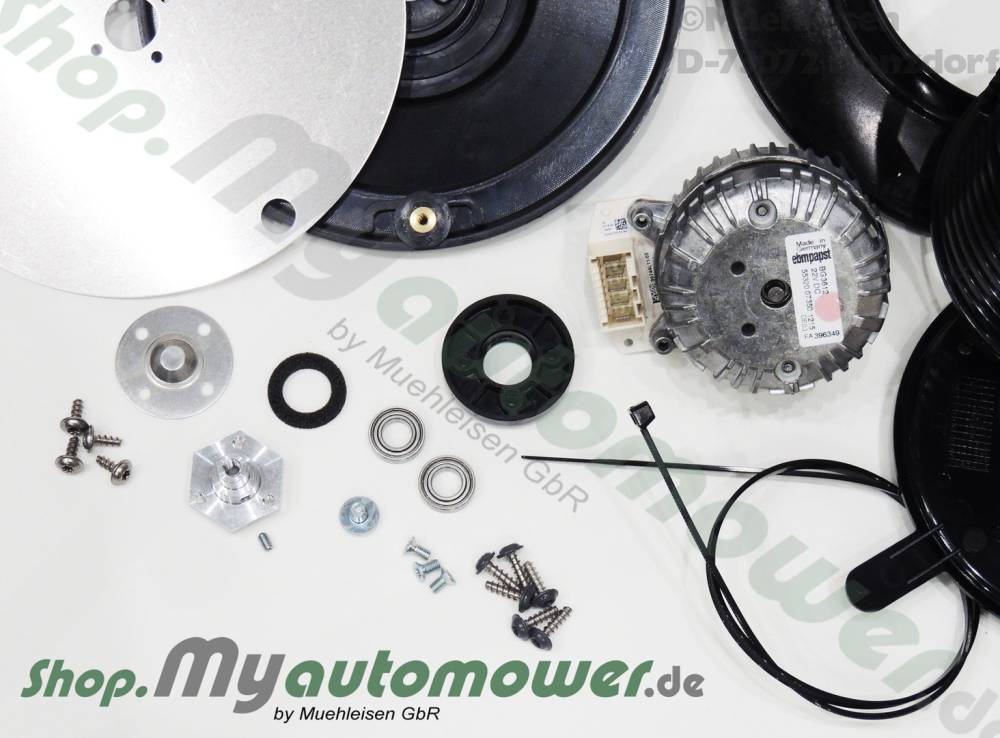

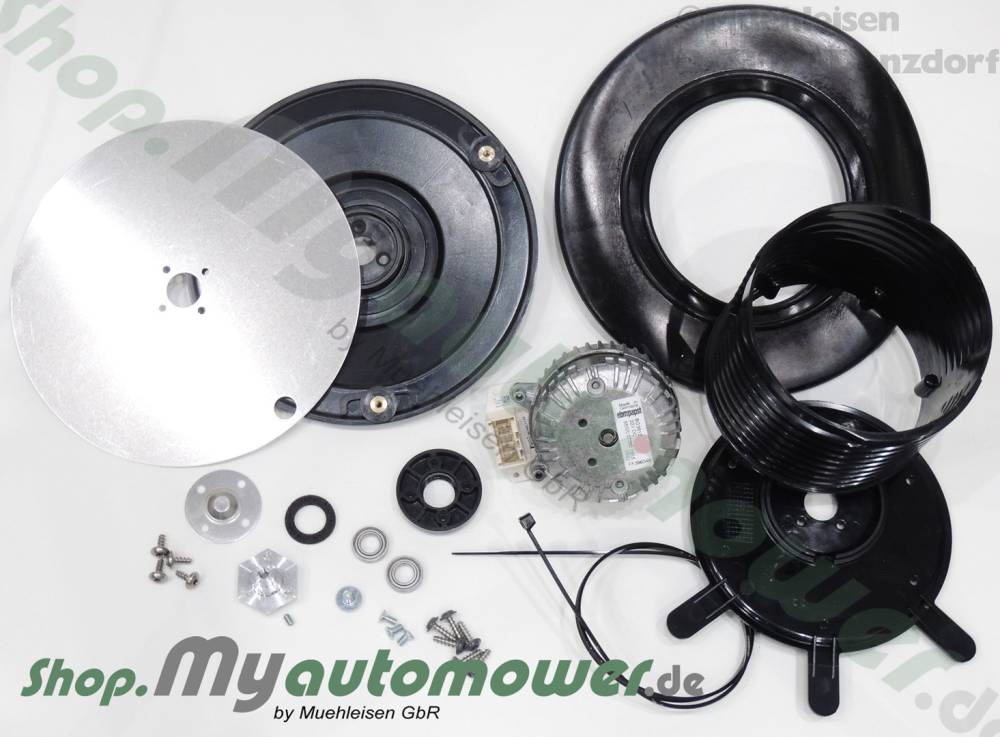

Dieses Angebot umfasst die folgenden einzelnen Produkte
4 Stück Schraube 10mm Silber G2 G3
3 Stück Senkschraube AM 1Stück
1 Stück Schraube Kurz X08 G1,G2,G3
1 Stück Aufnahme Lager Gleitscheibe G2,G3
2 Stück Kugellager Mähdeck 1Stück G1,G2,G3
1 Stück Messerscheibe G2 2004-2014 (o. Messer)
1 Stück Gleitplatte Mähdeck AM
1 Stück Dichtung Messerscheibe G1,G2,G3
1 Stück Deckel für Gleitscheibe G1,G2,G3
1 Stück Sicherungsband fuer Messerbalg G2 G3
1 Stück DicDichtung Balg Ring Messer - Sealing bellows ring - G2
1 Stück Spindel Maehmotor / Spindle mowing motors 10-
1 Stück Halter Unten Maehmotor 10-
1 Stück Mähmotor G2, 210,220,230,SH
6 Stück Schraube grau 14mm 5755433-14
4 Stück Schraube 5351307-10
1 Stück Aufnahme Messer Metall G2
1 Stück Schraube/ Sicherung Aufnahme
This includes the following individual products
Cela inclut les produits suivants
4 piece(s) Screw 10mm Silber G2 G3
3 piece(s) Countersunk screw AM 1 piece
1 piece(s) Screw X08 G1,G2,G3
1 piece(s) Reception center sliding G2,G3
2 piece(s) Ball bearings 1 piece cutting deck G1,G2,G3
1 piece(s) Cutting disc G2 2004-2014 (without Blade)
1 piece(s) Sliding Plate mower AM
1 piece(s) Seal cutter disc G1,G2,G3
1 piece(s) Cover for washer G1,G2,G3
1 piece(s) Backup tape for sealing G3 G2
1 piece(s) Dichtung Balg Ring Messer - Sealing bellows ring - G2
1 piece(s) Spindel Maehmotor / Spindle mowing motors 10-
1 piece(s) Bottom bracket mowing motors 10 -
1 piece(s) Blade Motor G2, 210,220,230,SH
6 piece(s) Screw grey 14mm 5755433-14
4 piece(s) Screw 5351307-10
1 piece(s) Inclusion diameter metal G2
1 piece(s) Schraube/ Sicherung Aufnahme
Herstellerangaben gem. Produktsicherheitsverordnung:
Husqvarna Deutschland GmbHHans-Lorenser-Straße 40
89079 Ulm
Tel. 0731 490-2500
kundenservice@husqvarna.de
SUITABLE COMPATIBLE
The item is suitable and compatible for following models and types*
| Marke | Modell | Generation | Plattform | Modelljahr |
|---|---|---|---|---|
| Husqvarna | Automower® 210C | G2 | 1 | (2007, 2008, 2009, 2010) |
| Husqvarna | Automower® 220AC | G2 | 1 | (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015) |
| Husqvarna | Automower® 230ACX | G2 | 1 | (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014) |
| Husqvarna | Automower® G2 | G2 | 1 | (2003, 2004, 2005, 2006) |
| Husqvarna | Automower® Solar Hybrid | G2 | 1 | (2008, 2009, 2010, 2011, 2012) |
| Husqvarna | Automower® Solar Hybrid (Black Metalic Edition) | G2 | 1 | (2013, 2014, 2015) |
| Gardena® | Gardena® R160 (G2) | G2 | 1 | (2013, 2014, 2015) |
*The maintain of our products will happen with care and good conscience. However, we do not take responsibility for any mistakes. If you are not sure about an item matching your model and type, feel free to contact us.
SPARE PART HISTORY / replacement part history
This spare part is up-to-date, but has a history of the spare part number.
The following spare part numbers are the same or compatible. Replaced parts*
* We do not take responsibility for accuracy of several informations.
