Power Unit Charging Station P15,310,315,P1,105 (EU 28V= 1,3A (1,15A))
(Item number: AM-529532601)
Transformer, (charger) for Automower®, Gardena charging station.
Power supply
EU 28 volts 1.15 A.
Transformer 1.3A (1300ma) 36.4VA
for Automower® 105, 310,315,315X, 305,405,415X, ... & Gardena Robotics
Latest version from 2019/2020.

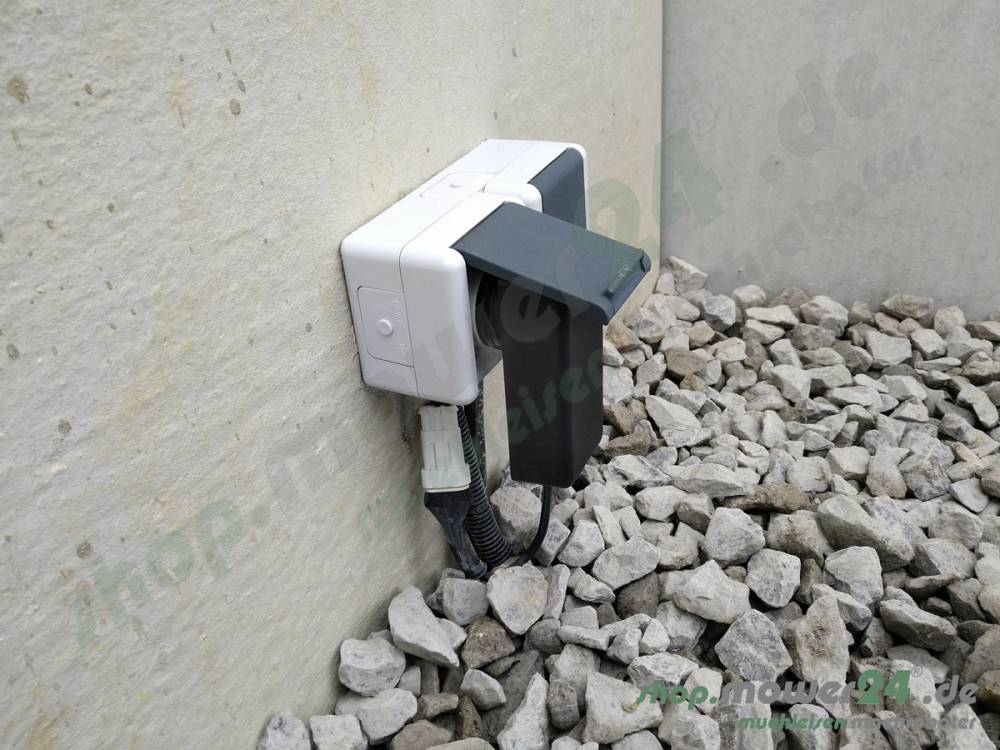

The problem was: - The transformer cannot be plugged into external sockets with difficulty or not at all
Cause: - Design too large - the plug does not stay in the socket
Solution: - New transformer 593 16 36-01 available - Slimmer design - Longer plug
ANTRIEBSEINHEIT Power supply 1,3A type K EU(DP)
Power supply unit
590 44 21-01, 593 16 36-01, ...
590 44 21-01, 593 16 36-01, ...
Technical specifications:
Input (primary): 100-240V, / 50-60Hz / 763mA (0.76A)
Output (secondary): 28V = (DC direct current) / 1.3A (1300mA) / 36.4W - 36.4VA
FW7312 / EU / 28 / 1.3
IPX44
ADP-40EW C
ta60, FWGB
Transformer must not be plugged directly into the charging station. Always use transformer cables (3, 10, 20 meters)
Construction:

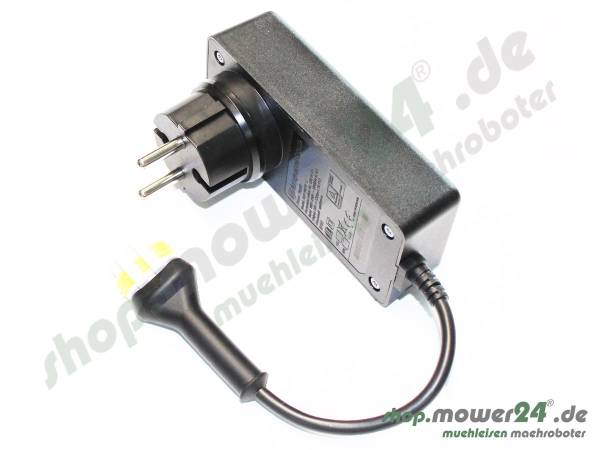

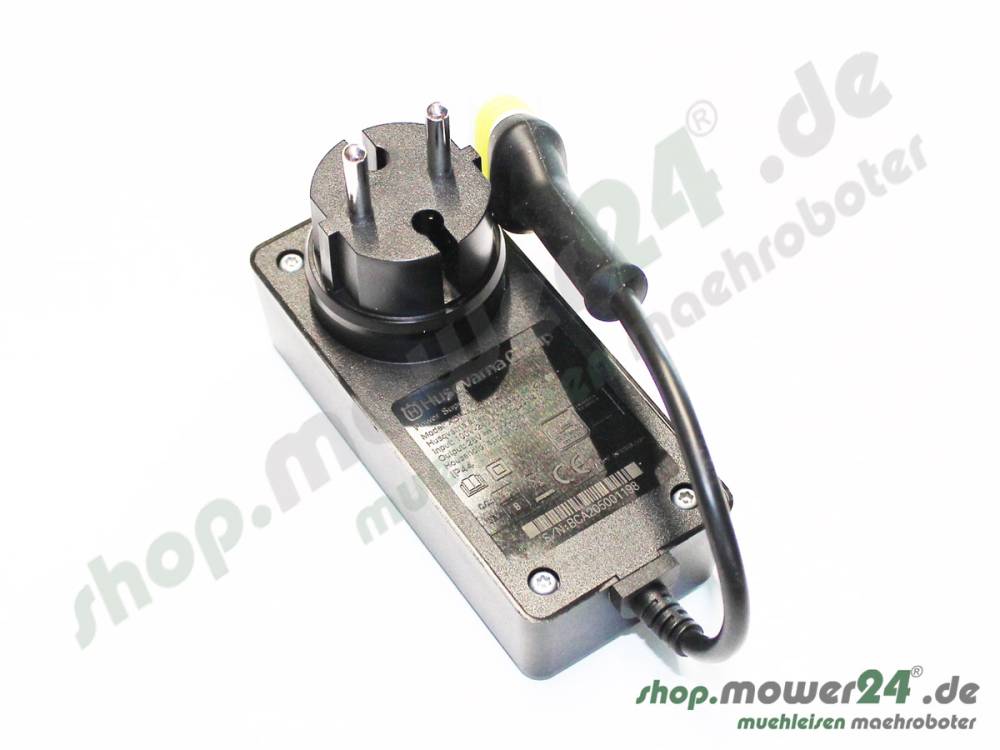

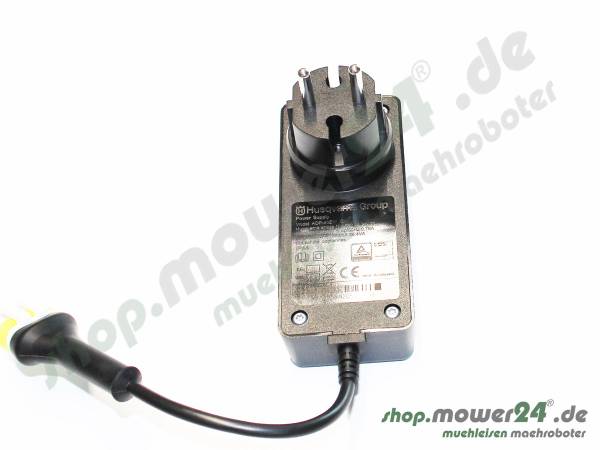

Plug-in transformer (directly into the socket)
Power Supply 1.3A EU, Plug In 590442101 Packed

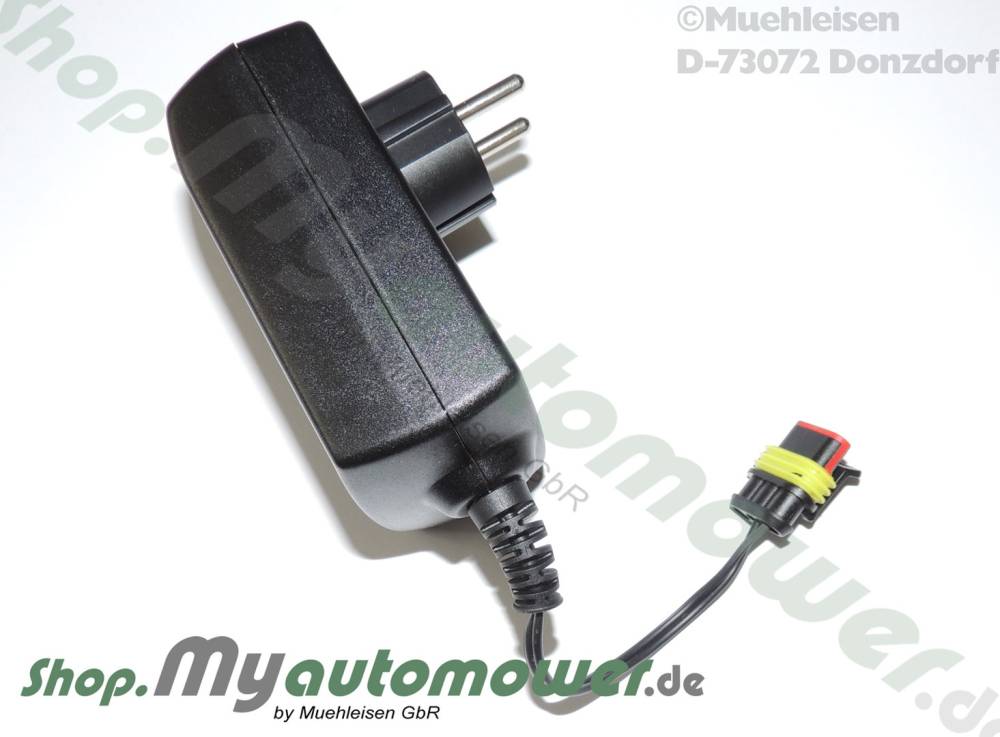

Note: The optics of the transformer have changed several times recently.
We always provide you with an up-to-date transformer.
The numbers on the transformer may differ.
593163601, 590442101,5848625X
SUITABLE COMPATIBLE
The item is suitable and compatible for following models and types*
| Marke | Modell | Generation | Plattform | Modelljahr |
|---|---|---|---|---|
| McCulloch | McCulloch Rob R600/800/1000 | G3 | P1C | (2017, 2018, 2019) |
| McCulloch | McCulloch ROB S400/500/600/800 | G3 | P01 | (2019, 2020, 2021) |
| Husqvarna | Automower® 105 | G3 | P1 | (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023) |
| Husqvarna | Automower® 305 | G3 | P12 | (2020, 2021, 2022, 2023) |
| Husqvarna | Automower® 310 | G3 | P15 | (2015, 2016, 2017, 2018, 2019, 2020, 2021) |
| Husqvarna | Automower® 310 Mark II | G3 | P12 | (2022, 2023) |
| Husqvarna | Automower® 315 | G3 | P15 | (2015, 2016, 2017, 2018, 2019, 2020, 2021) |
| Husqvarna | Automower® 315 Mark II | G3 | P12 | (2022, 2023) |
| Husqvarna | Automower® 315X | G3 | P15 | (2018, 2019, 2020) |
| Husqvarna | Automower® 315X Limited | G3 | P15 | (2020) |
| Husqvarna | Automower® 405X | G4 | P16 | (2021, 2022, 2023, 2024) |
| Husqvarna | Automower® 415X | G4 | P16 | (2021, 2022, 2023, 2024) |
| Husqvarna | Automower® 550 EPOS | G4 | P2Z | (2021, 2022, 2023) |
| Husqvarna | Automower® 550H EPOS (USA) | G4 | P2Z | (2021, 2022) |
| Gardena® | Gardena® R38Li, R40Li, R45Li, R50Li | G3 | P1G | (2016, 2017, 2018, 2019) |
| Gardena® | Gardena® R70Li, R75Li, R80Li | G3 | P1G | (2016, 2017, 2018, 2019) |
| Gardena® | Gardena® SILENO City 250/400/500 | G3 | P01 | (2018, 2019, 2020, 2021) |
| Gardena® | Gardena® SILENO life 750/1000/1250 | G3 | P02 | (2019, 2020, 2021) |
| Gardena® | Gardena® Sileno Sileno+ R100Li, R130Li, R160Li | G3 | P15G | (2016, 2017, 2018, 2019, 2020, 2021) |
| Gardena® | Gardena® smart SILENO City 500 | G3 | P01 | (2018, 2019, 2020, 2021) |
| Gardena® | Gardena® smart SILENO life 750/800/1000/1250 | G3 | P02 | (2019, 2020, 2021) |
| Gardena® | Gardena® smart SILENO, SILENO+ | G3 | P15G | (2016, 2017) |
| Gardena® | SILENO minimo | G4 | P005 | (2021, 2022) |
| Flymo | Flymo EasiLife GO | G4 | P005 | (2021, 2022) |
*The maintain of our products will happen with care and good conscience. However, we do not take responsibility for any mistakes. If you are not sure about an item matching your model and type, feel free to contact us.
SPARE PART HISTORY / replacement part history
This spare part is up-to-date, but has a history of the spare part number.
The following spare part numbers are the same or compatible. Replaced parts*
* We do not take responsibility for accuracy of several informations.
