Description:
A front wheel kit / set with 6mm shaft for Automower®.
The kit includes a front axle with a diameter of 6 mm (the original 5 mm) and a steeper angle, which leads to a greater distance between the wheels and blades.
From model 2009 on, upgrade kit is installed at the factory.

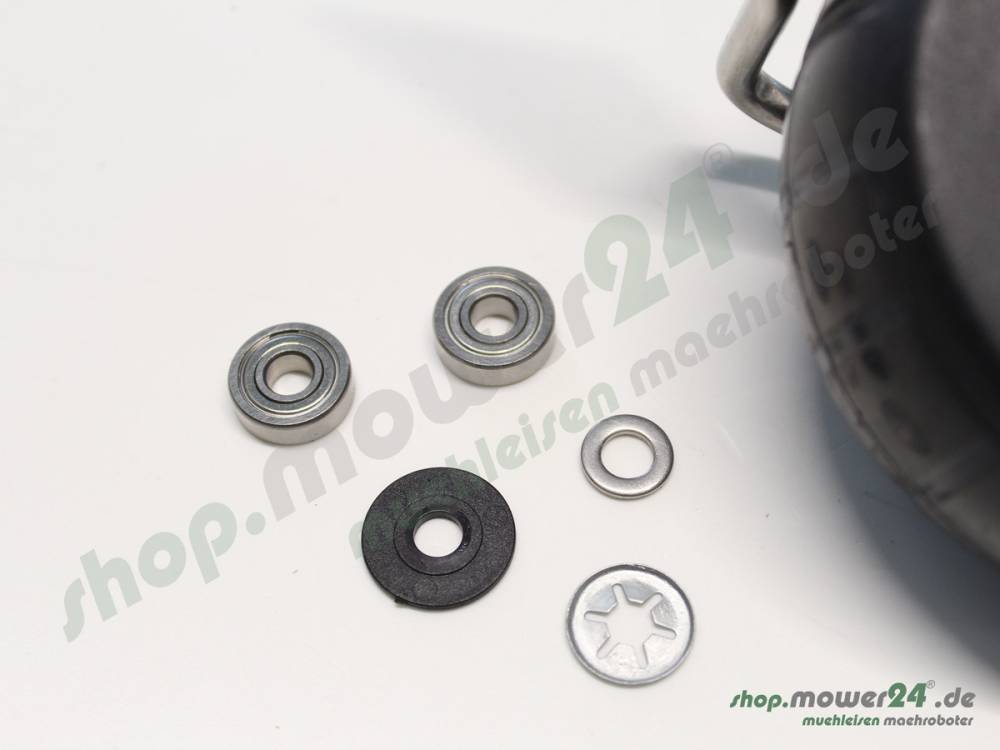

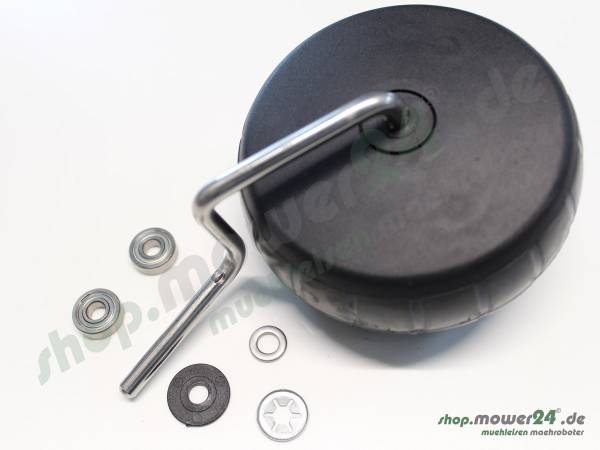

Content:
1 piece rubber wheel (AM)
4 left front wheel bearing for 6mm (AM-522 505 001)
1 piece axle 6mm (AM-522 504 801)
3 pieces Distansscheibe / washer 6mm (AM-535 087 802)
1 safety cap for 6mm (AM-521 933 101)
1 lock washer for 6 mm (AM-735 584 109)
1 disk for 6mm (AM-522 736 601)
WARNING:
This rate is only one page! Say you need for a rebuilding two sets.
Data Fits
Model: G2, 210C, 220AC, 230ACX, SH
Suitable from 2004
Recommendation but only since 2007 (more stable housing as of 2007)
Standard from 2009
Replaces:
522664501
522664501G
522664502
522664502G
Manufacturer: Original part
