Module B GSM GPS Set (Zur Nachrüstung)

B-module (GSM / GPS unit) was eingefürt as a new accessory for almost all Automower®.

This Mobul-B with a GPS unit is a significant step forward compared with the first module A-(Simple GSM unit)
and a good addition to theft protection.


The GSM function:
This module is a complete solution. The Automower® sends an SMS when faults or alarms.
You have the opportunity here to send your Automower® commands, like start or parking.
Also changes of timers, are easy to make mowing time by remote control.
For iPhone or smart phone with Android operating system, you can control even easier than the "Robotic Application" numerous functions.

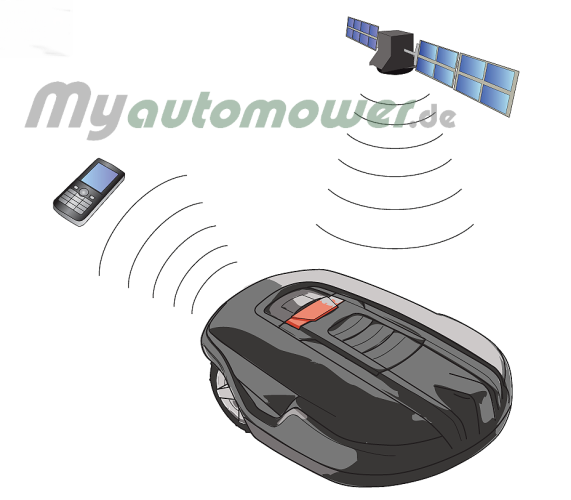

The GPS function:
The location of your Automower® using GPS is possible.
The location of your Automower® is thanks to the app directly on the map, or on the transmission of geographical coordinates via SMS.
The Automower® automatically sends you its current location via SMS as soon as he was further away from its working radius.
The location can also be done via the IMEI number.

The following functions are the "Module B" are possible:
■ Automatic notification of error or alarm via SMS to your mobile phone
■ Status check Automower®
■ timer, day timer, weekly timer query Weekend timer or change.
■ mower start (AUTO mode).
■ mower stop or park in the loading station (HOME mode).
■ Location of Robotic query via GPS.
■ Error SMS to multiple users (up to 5) are possible with mobile phone.
■ Admin only one user / mobile telephone.
■ Operation of the "Robotic Application"

The GPS anti-theft
The GPS anti-theft alarm offers complete protection for your Automower®. We, the mower from its default
Range (radius) away, he sent a text message with a warning. Subsequently, at each change of location
The Automower® new SMS sent to the current location. By entering into the SMS sent
Position data from an online mapping service (Google Map) can be tracked, while the mower
transported. The position can be copied exactly from the text.
The GPS unit comprising its own battery when the battery ablkemmen Automower® the GPS unit for some
Time maintains.

Note:
For the Mobul-B, a SIM card from the owner / client needs.
It is not included in the installation kit or a Automower®.
Konsten for the Sim card bears the owner / client.


Application:
There are currently two different apps:
(See also photos and images)
- Free App original Husqvarna SE for the iPhone.
- Paid (, € 2.99) app for many smartphones with Android operating system.


Our B-module (GSM-GPS kit) can be retrofitted for Robotic following models:

- Husqvarna Robotic 265ACX Year: 2012 (already installed on new equipment standard.)

- Husqvarna Robotic 260ACX model years 2011
- Husqvarna Robotic 260ACX model years 2010
- Husqvarna Robotic 260ACX model years 2009 **
Possibly **. Software Update Automower® board is required. (Buttom with / / / w / / /)

- Robotic Solar Hybrid Husqvarna Year 2012 (already installed on new equipment standard.)
- Robotic Solar Hybrid Husqvarna built in 2011
- Robotic Solar Hybrid Husqvarna built in 2010

- Husqvarna Robotic 230ACX Year 2012
- Husqvarna Robotic 230ACX built in 2011
- Husqvarna Robotic 230ACX built in 2010
- Husqvarna Robotic 230ACX Year 2009 **
- Husqvarna Robotic 230ACX Year 2008 **
- Husqvarna Robotic 230ACX Year 2007 **
Software Update ** Only the Automower® board is required. (Buttom with / / / w / / /)

- Automower® 220AC Year 2012
- Automower® 220AC built in 2011
- Automower® 220AC built in 2010
- Automower® 220AC Year 2009 *
- Automower® 220AC Year 2008 *
- Automower® 220AC Year 2007 *
- Husqvarna Robotic G2 Year 2006 *
* Software and hardware updates Automower® board is required. (Buttom with / / / C / / /)
We build to your board and set it on the GPS module-B. You need to buy a new motherboard!
Our success in establishing and rebuilding is over 99%. See the selection menu costs / / / C / / /.


- Husqvarna / Electrolux Automower® G2 Year 2005 **** Einau not possible.
- Husqvarna / Electrolux Automower® G2 Year 2004 **** Einau not possible.

- 210C Husqvarna Robotic model years: 2007 to 2011 **** Einau not possible.

- Husqvarna Automower® 305 Year: 2011, 2012, ... Einau **** not possible.

- Gardena R40Li Year: 2012, ... Einau **** not possible.



Content of our installation kits:

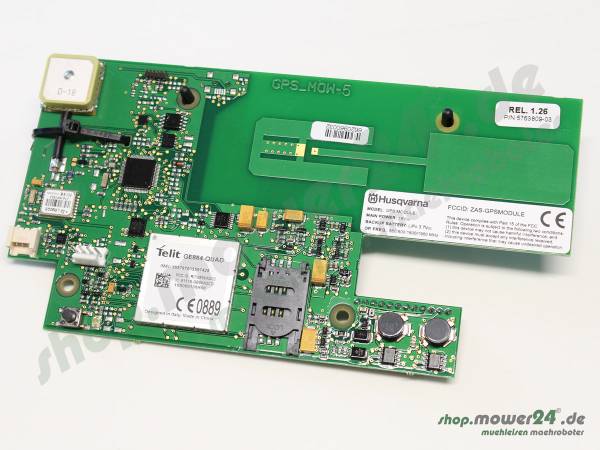

- GSM / GPS board with the latest firmware.
- Befenstigungssatz with screws, ...
- Cable / n
- Installation instructions for the hardware (picture guide)
- Operating with a function description in many languages ​​(German, English, FR, ...)
- Manual with all the commands in an overview of the module B
- Technical data and status messages.

Selection of the Order:

///A/// =-free installation kit delivery. DIY installation. No software update is necessary or desirable.
(Model years: 2010, 2011, 2012, ...)

///B/// = You send us your Automower® main board of the appointment.
We do a software update and the module will send you back to your motherboard.
(No extra cost)

///C/// = You send us your Automower® Hauptpltaine after ordering.
We make a harware and software update and send you back to the Hauptpltaine module.
(Low additional cost)

///D/// = Installation and purchase is not possible.
