description
Micro switch for red stop button / lever.

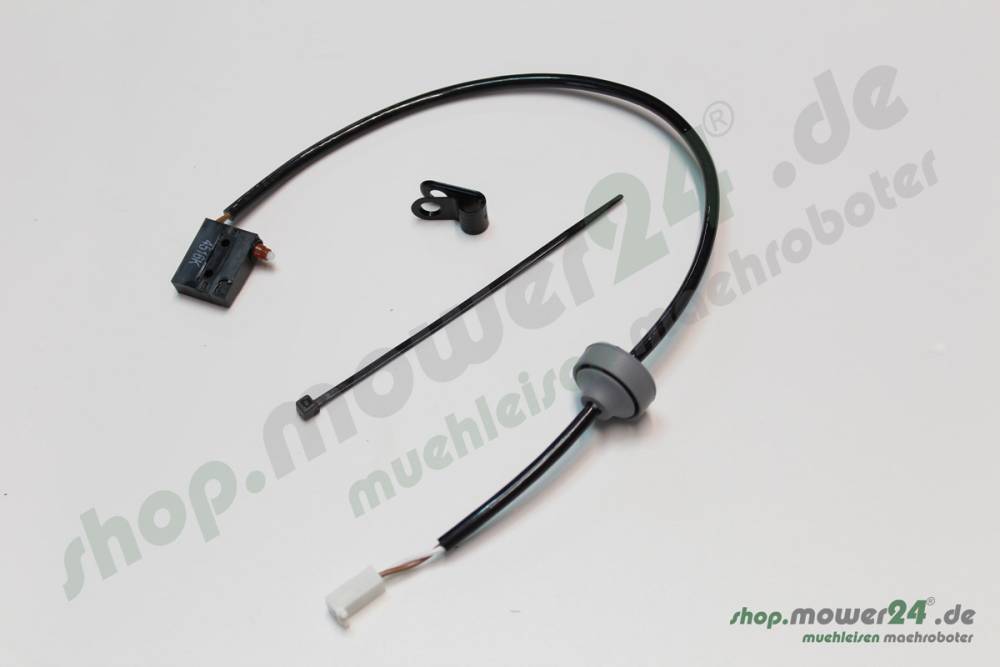

Micro switch kit with bracket and power.

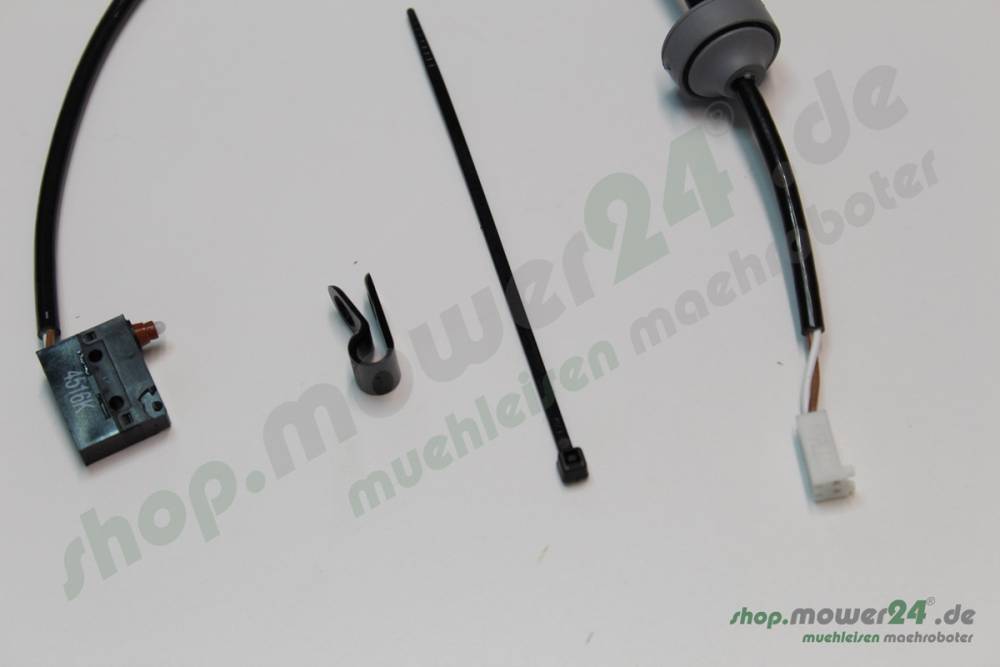

Switch with cable, plug and seal.
More robust new version with support
Ready for installation.
Note:

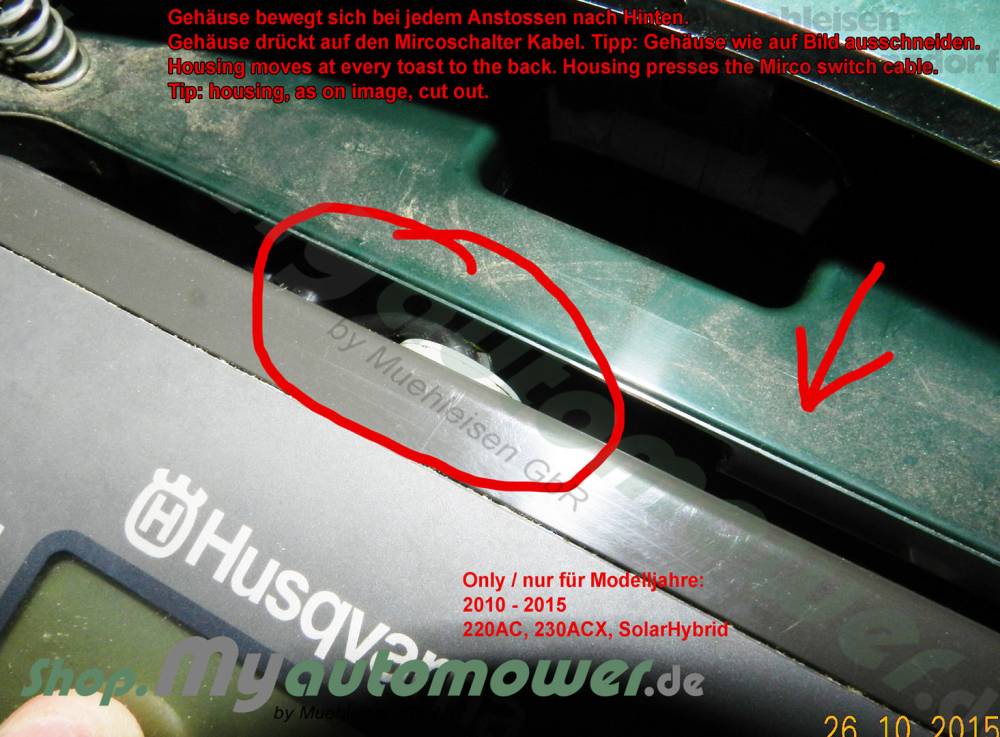

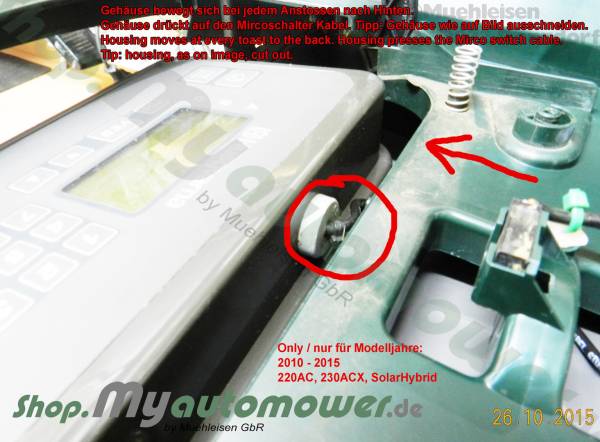

A defective microswitch and the connection cable can cause the following problems:
Frequent error message: "Out" / "PIN Code Expired"
Symptoms: No inputs on the keyboard impossible. / Display switch is no longer around.
Should one or more of these errors occur for no apparent reason, you should urgently renew our switch kit / set.
Models built from 2010 and 2011 are unfortunately often concerned with the error "outside" it.
This is very often (90%) at this counter.
Our new kit with a new switch and long cord is the right solution.

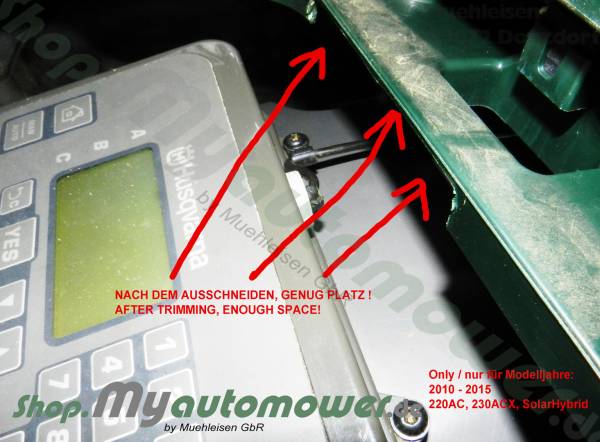

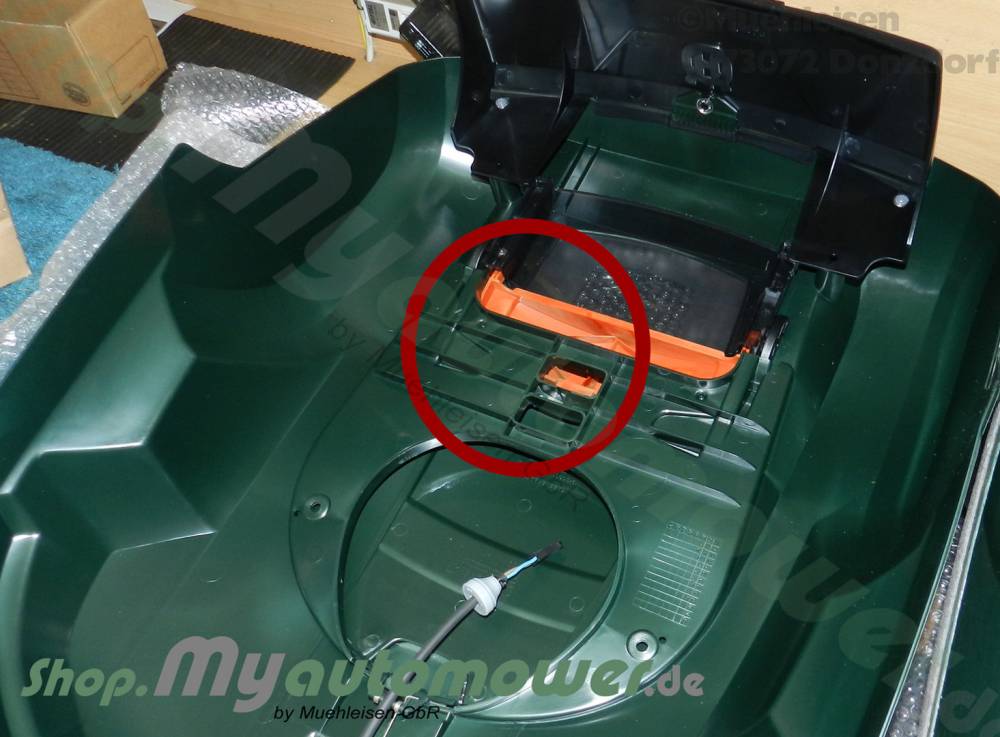

installation:

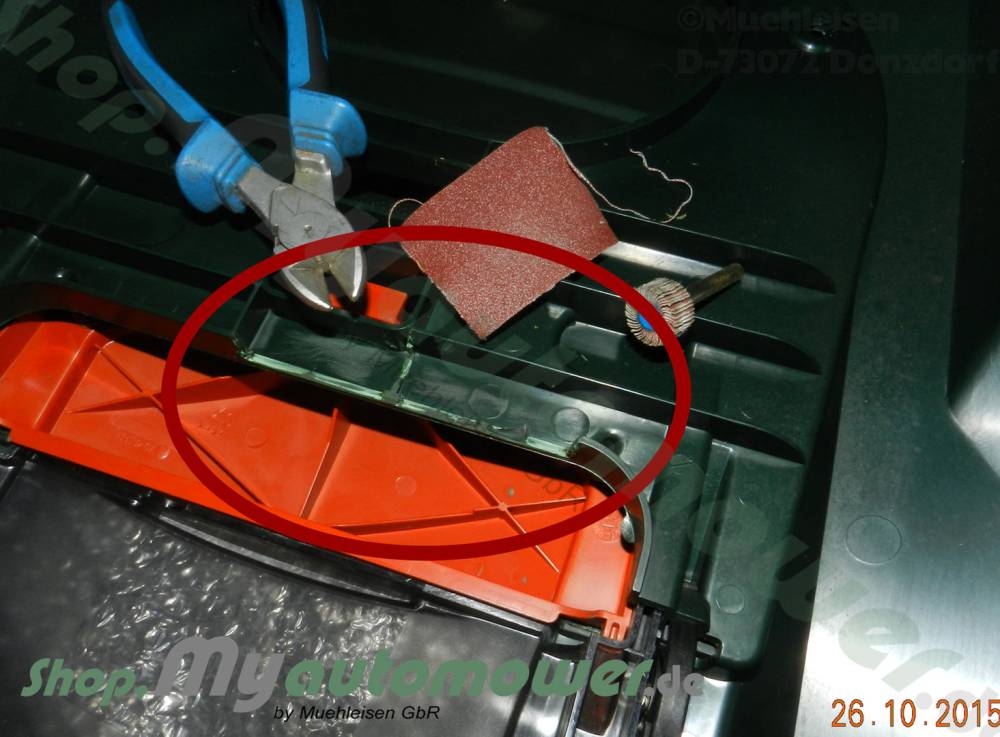

Tools: Torz20, screwdrivers, allen
Installation time: 15-35 minutes
data
suitable for
Models: 220AC, 230ACX, 260ACX, solar hybrid ...
Year: 2010, 2011, 2012, 2013

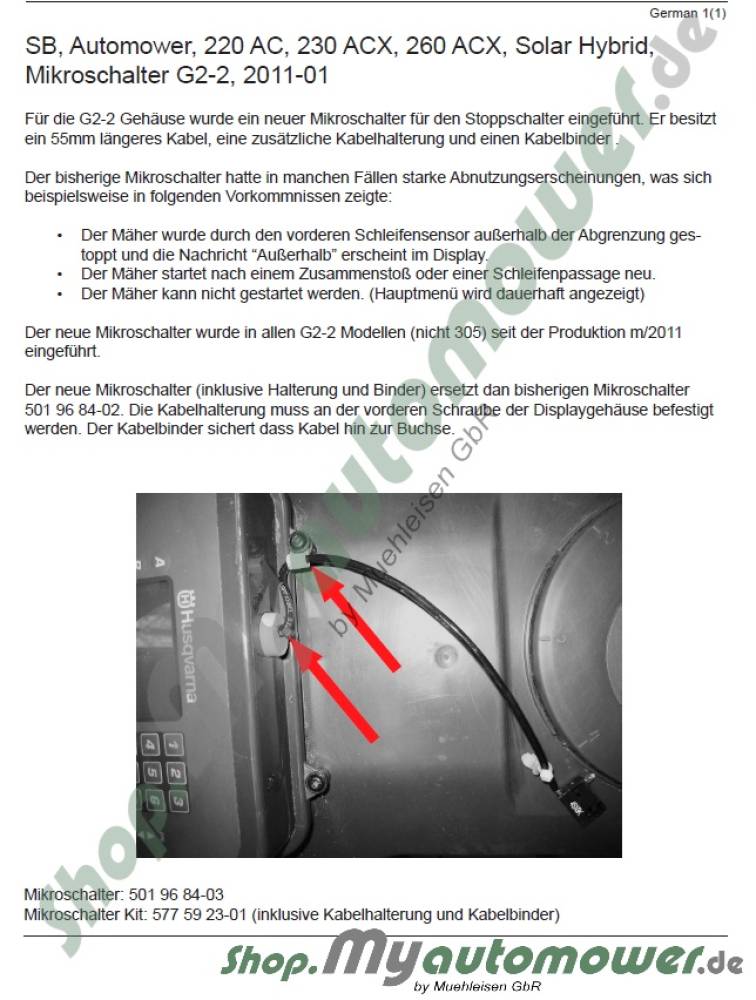

replaces:
577 59 23-01 (Kit for 2010 and 2011)
501 96 84-03 (2011, 2012, 2013)
501 96 84-02 (2010)
EAN:
Manufacturer: Original part
