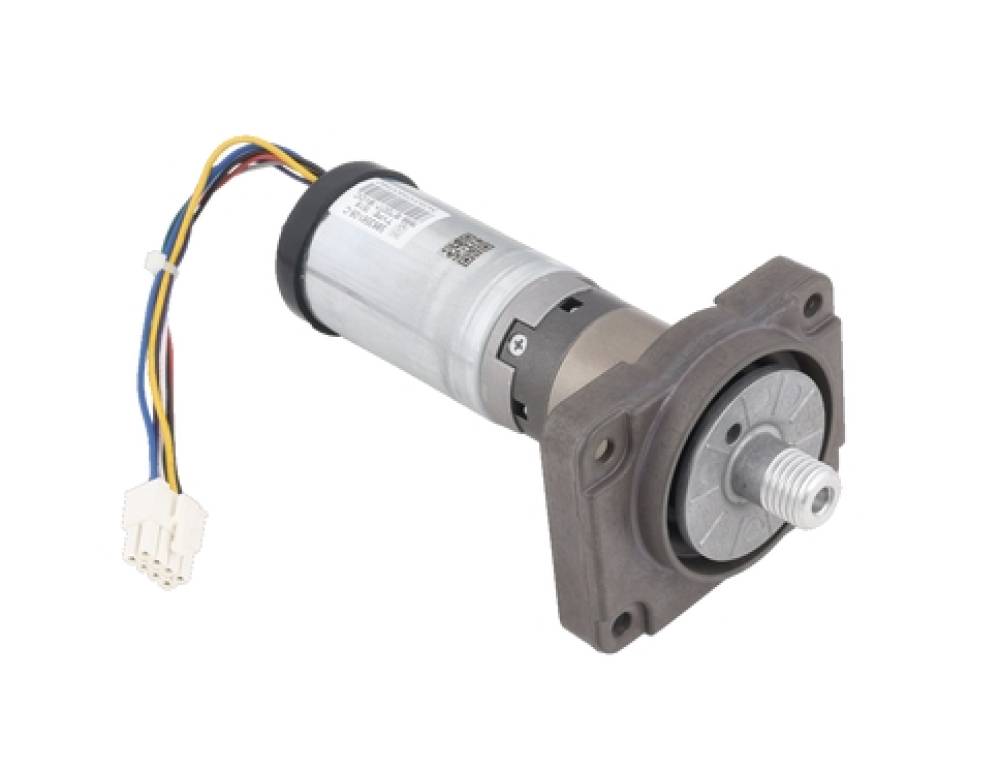

Wheel motor Drive motor Husqvarna Automower® P2

Drive motor,  Drive Wheel / Kit G3-P2

Engine Set, Wheel Motor, Drive Wheel
MOTOR KIT / P2,Drive Wheel

New drive motor 2021
NEW from 2021
Update of the wheel motors from 2019, 2020
New ET number 5816213-05 or -06 or -07 on package
(Labeled on the wheel motor is 5863561-0X-X, e.g. 5863561-05-G, 5863561-04-X, ect ...)

• New storage solution
• Improved grease solution
• Improve lubrication and harder gears.
• Metal wheel recording (no more plastic.) Stable.

(Note: The grey metal holder may stain slightly in the original Husqvarna packaging carton. No reason for complaint, product isunscathed!)

Suitable for
Automower® 440
Automower® 450X
Automower® 430X
Automower® 420 only until 2020. Up to serial number: ( < 20xxXXXXX)
Automower® 320 - 2015
Automower® 330X - 2015

not for Automower® 320 - model years 2013 and 2014
not for Automower® 330X - model years 2013 and 2014
not for Automower® 420 - from model years 2021, 2022, ...
(NOT for / NOT for !! 581 62 13-01, 587 44 94-02 !!)

Note when installing / replacing the wheel motor on an Automower® 320 and 330X - 2015
Wheel motors can be replaced, no hardware conversion like harness.
However, new software is needed for models in 2015, SW with Ultra Silent Drive.
(Has nothing to do with SW stand or software version !!)
(Without SW change, device runs twice as fast backtracking and can cause damage to motherboard)

important:
- Software update required for conversion or replacement of standard wheel motors (2013 and 2014) to Ultra Silent Drive !!
- When replacing an Ultra Silent Drive motor with a similar Ultra Silent Drive motor, NO SW update is required.
- When converting or replacing standard motors on Ultra Silent Drive, BEIDE wheel motors must be replaced. pairwise!
(It is not possible to combine the standard motor and the Ultra Silent motor in the same device.)

Manufacturer Note:
Ultra Silent wheel motors are to be considered as annual product updates.
Warranty claims cannot be made to upgrade from Standard to Ultra-Silent Wheel Motors.
(Applies to devices model years from 2013 and 2014 with standard motors).
