description

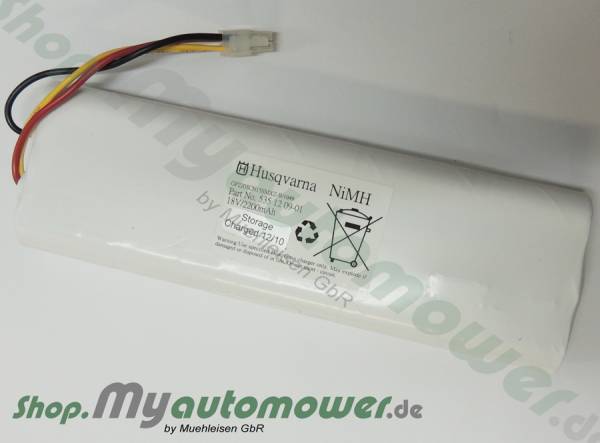

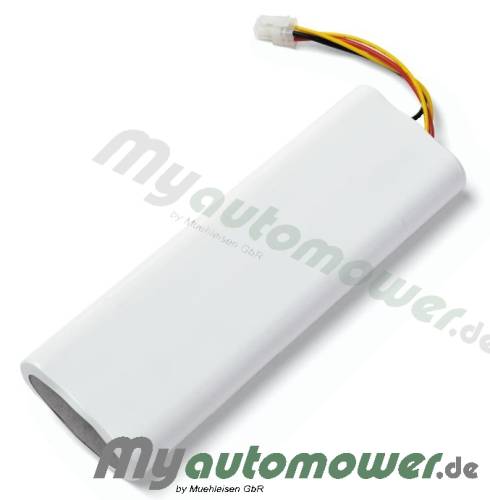

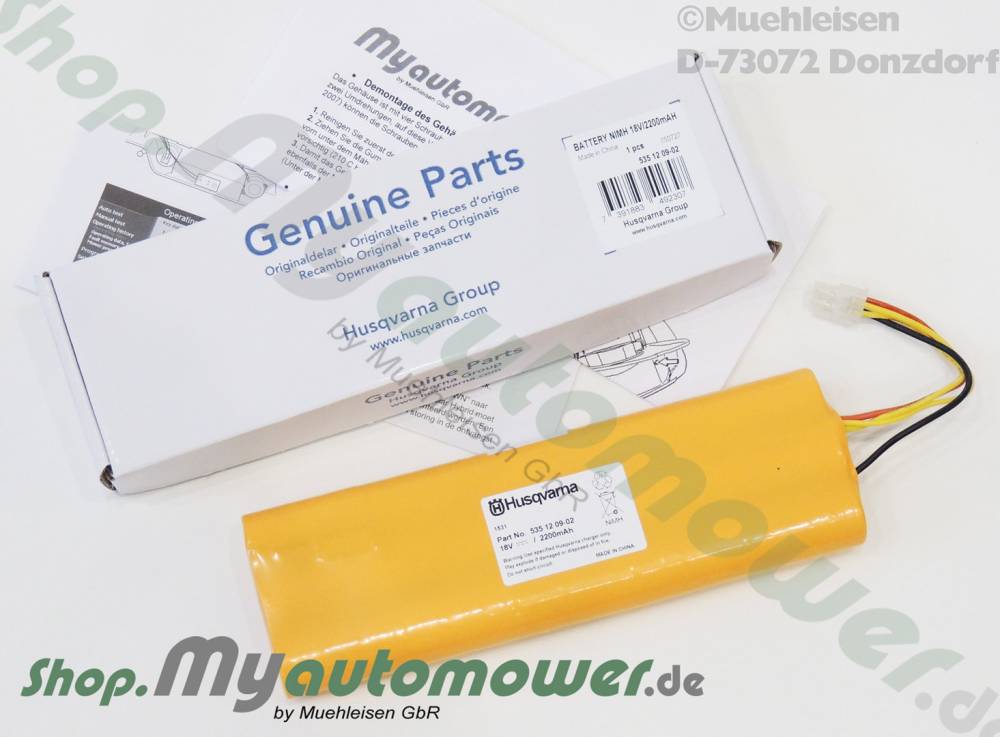

Original Husqvarna battery (battery) with plug for all Automower® G2, 220AC, 230ACX, SolarHybrid
Data: NIMH 18V 2.2Ah (2200mAh)

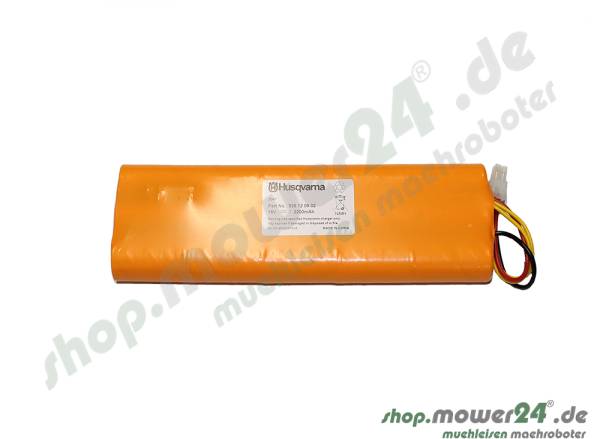

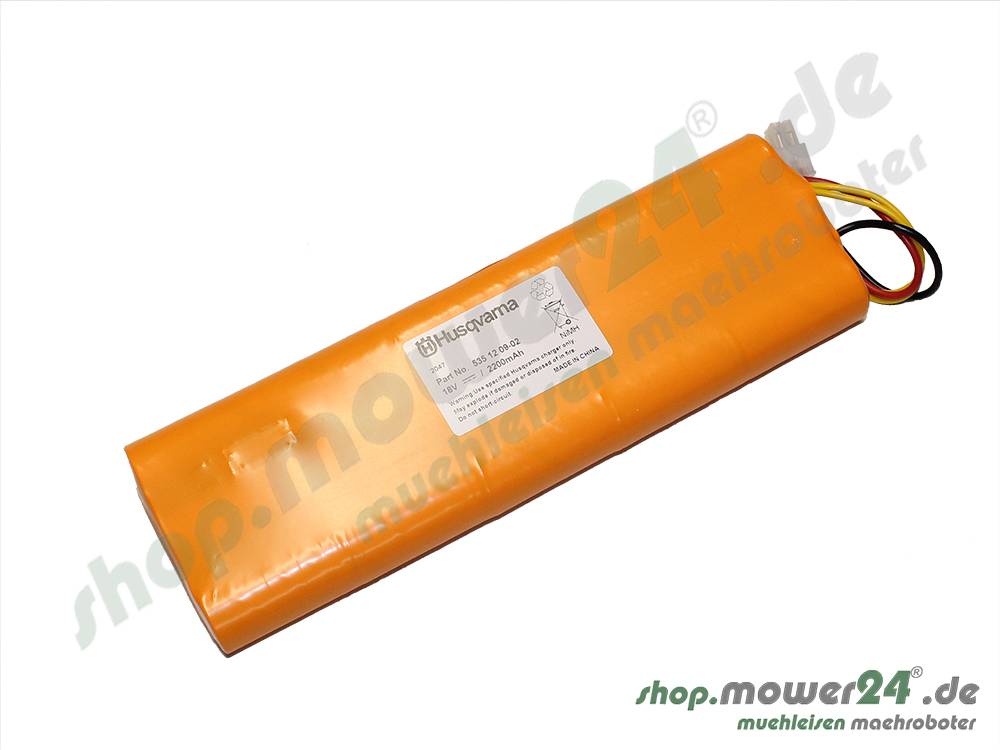

Colour: orange (535120902) or green (535120903) !
Delivery with short German installation instructions.
In order to avoid damage to main board motherboards, we always recommend using the original batteries.
Replica BATTERY with more capacity is often the cause when components on the main board burn out after a short time. motherboard damage. The original batteries are strongly recommended, especially for the 230ACX models with a very high charging current.
Please pay attention to the installation direction. Sticker with "This side down" !!
Note:
Two batteries are required for Automower® 230ACX.
One battery is required for Automower® 220AC.
One battery is required for Automower® SolarHybrid.
One battery is required for Electrolux Automower® G2 2004 and 2005.
One batterie is required for Automower® G2 2006.
Data
Suitable for
Models: G2, 220AC, 230ACX, SolarHybrid
Year of construction: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, (2015)
Manufacturer: original part Husqvarna
Manufacturer's warranty: 12 months or up to a maximum of 2,000 charging cycles Manufacturer's warranty from Husqvarna
Note:
Return of installed spare parts is not possible!
Battery life (G2 NiMH):
A "G2" battery is usually designed for around 1000 to 2000 charging cycles.
The manufacturer recommends the latest replacement after 1,800 charging cycles.
A "G2" battery is usually designed for a service life of 1.5 to 4 years.
A "G2" battery should be replaced every 4 years at the latest!
The manufacturer's guarantee for new "G2" batteries is 12 months.
The battery capacity decreases with increasing service life.
Battery voltages "V" (G2 NiMH):
18 volts = gauge battery. Should be charged with the Automower® in the charging station.
21 volts = fully charged battery.

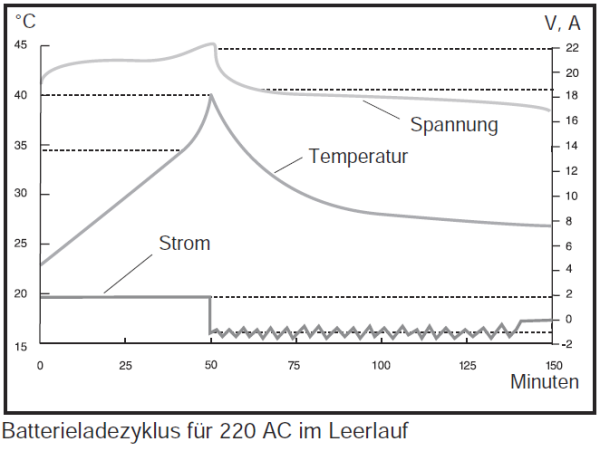

Battery current "A" "mA" (G2 NiMH):
Charging processes are primarily controlled by the transformer.
The theoretical charging current is.
Automower® G2, 220AC = 1.75A
Automower® SolarHybrid = 2.1A
Automower® 230ACX = 4.0 A.
The actual nominal charging current shown in the display is at
Automower® G2, 220AC = 1.2 - 1.7A (1200-1700mA)
Automower® SolarHybrid = 1.5 - 2.0A (1500-2000mA)
Automower® 230ACX = 3.0 - 4.0A (3000-4000mA)
Battery capacity "Ah" "mAh" (G2 NiMH):
The battery is considered fully charged:
220AC, solar hybrid = 2200mAh
230ACX = 4400mAh
260ACX = 6000mAh
Hints:
- At higher ambient temperatures, the charging times are generally a little longer than normal.
- The charging process is generally stopped even if the battery temperature rises above 53 ° C. If a charging process is canceled, the mower is considered fully charged.
- The available capacity decreases as the ambient temperature rises.
*The maintain of our products will happen with care and good conscience. However, we do not take responsibility for any mistakes. If you are not sure about an item matching your model and type, feel free to contact us.
This spare part is up-to-date, but has a history of the spare part number.
The following spare part numbers are the same or compatible. Replaced parts*
