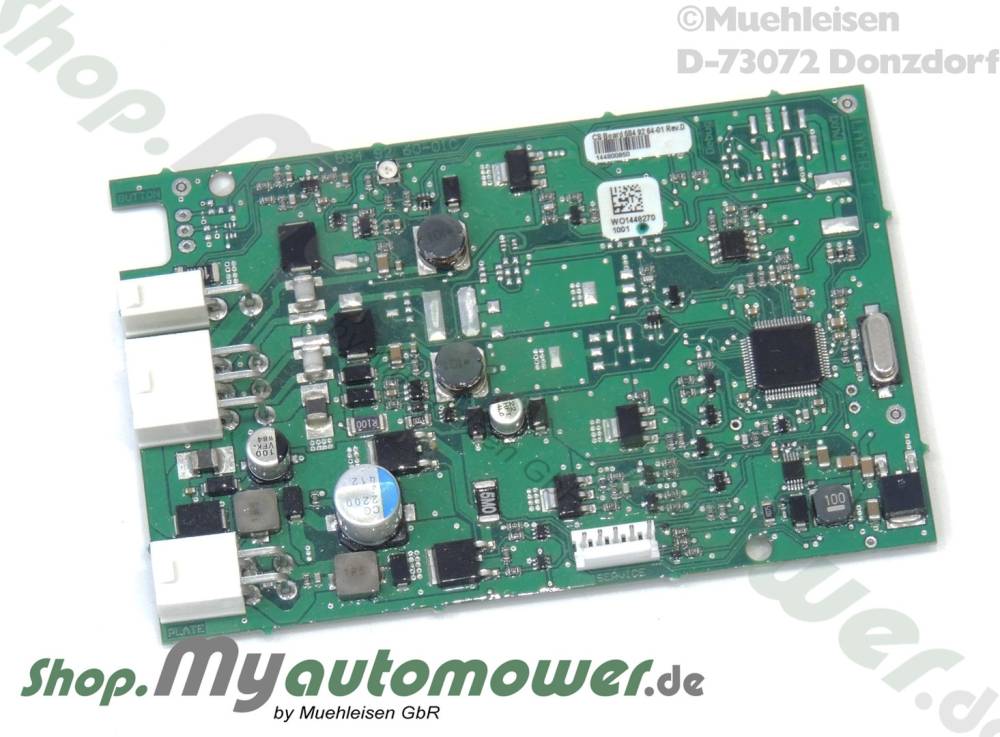

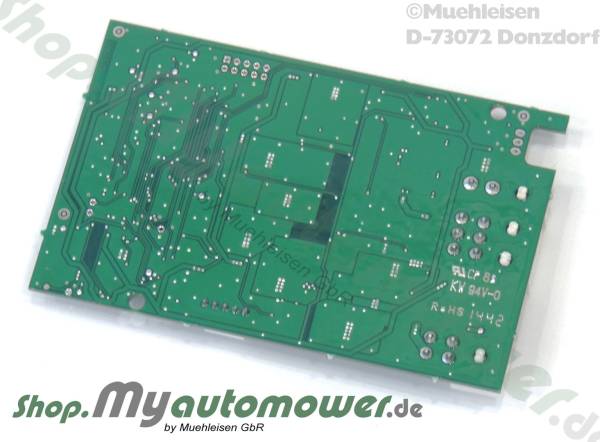

Circuit board / board charging station - P15

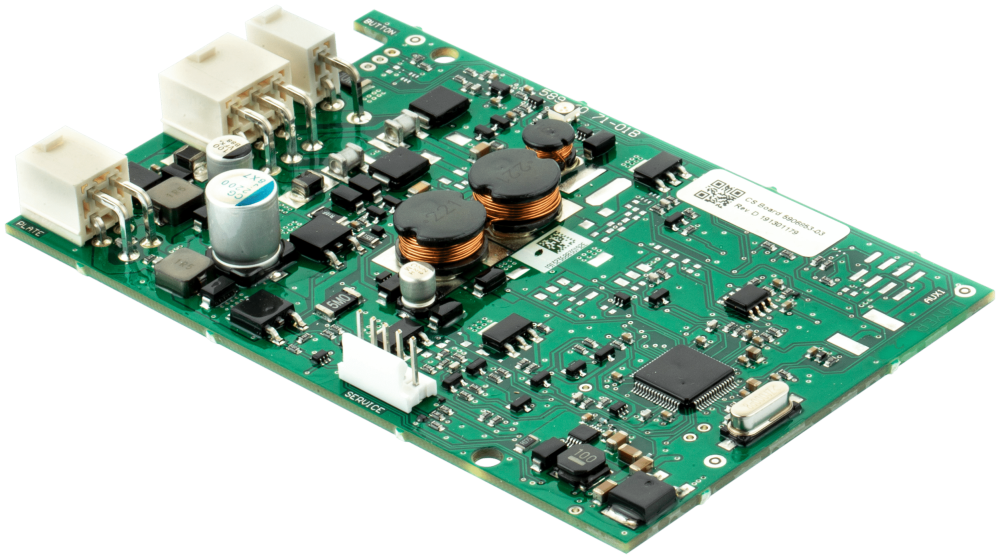

PCBA Charging Station
PCBA CS Board Type 3
BOARD CPL.
Board cpl. - PCBAChargingStation1
LS board / board CS - P15 - 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, ...
PCBA & nbsp; P15 CS Board Type 27
PCBA CS Board Type 17
5906853-01,5906853-02,5906853-03,5906853-04 Packed, PCBA & nbsp; P15 CS Board GP
Important:
After installing the board you have to generate a new loop signal.
To do this, place the mower in the charging station and in the menu Security, select and confirm a new loop signal.
Note:
The circuit board is sealed a return or recall is impossible after unpacking or use! No exception!
TIP:
Please check before ordering whether your circuit board is defective!
You can also check the base plate of the charging station (F and N signal) with a multimeter (measuring device).
If the loop, cables in the base plate are defective, you do not need to replace the charging station circuit board!
No charging current. No LED light.
The charging current is NOT controlled by the charging station circuit board !!
The transformer cable connection cable is very often defective. The transformer can also be defective.
For a short test, you can plug the transformer directly into the charging station (230V volt extension cable required) and then check the LED.
Thus you can determine whether the transformer cable or the transformer are defective
The charging station board sometimes breaks, but very rarely!
Often the fault is not in the LS board. For reference only.
